VDR under design

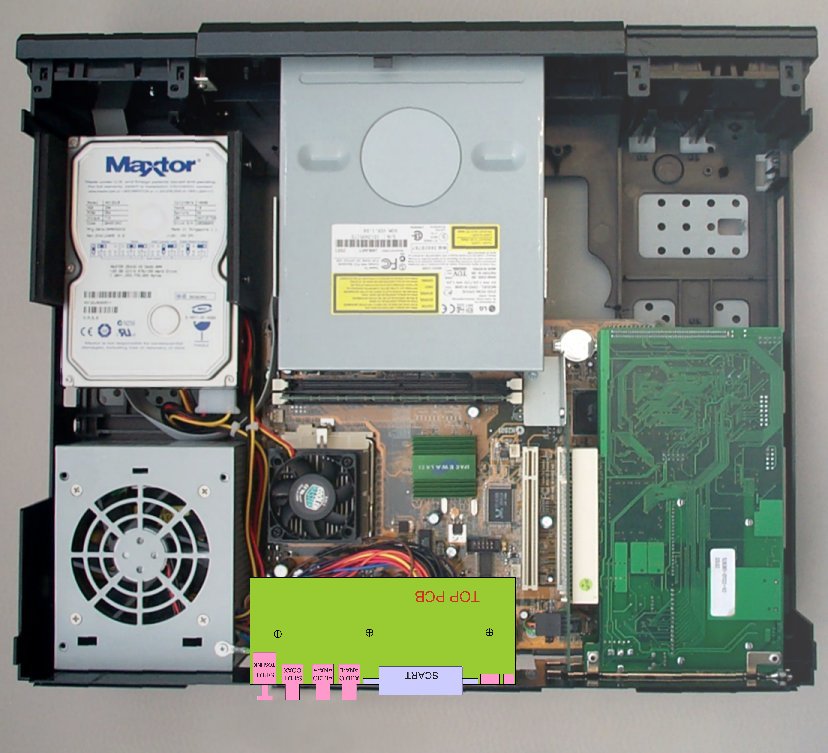

Picture of the open VDR. The components are mounted into an old VCR housing ;-) Main parts are: Shuttle MV25N mainboard, 1.3GHz Celeron, 2 Fujitsu-Siemens v1.3 DVB cards with riser card, Maxtor 120GB HD, small 145W ATX power supply, DVD ROM (will be replaced by a DVD writer), 4x20 LCD. Space on the right side is for the CA module.
The Hardware Extension Board will be mounted at the rear side as shown below. |
