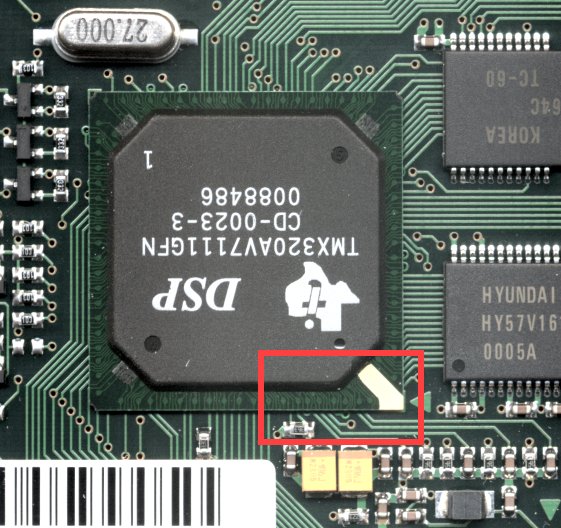

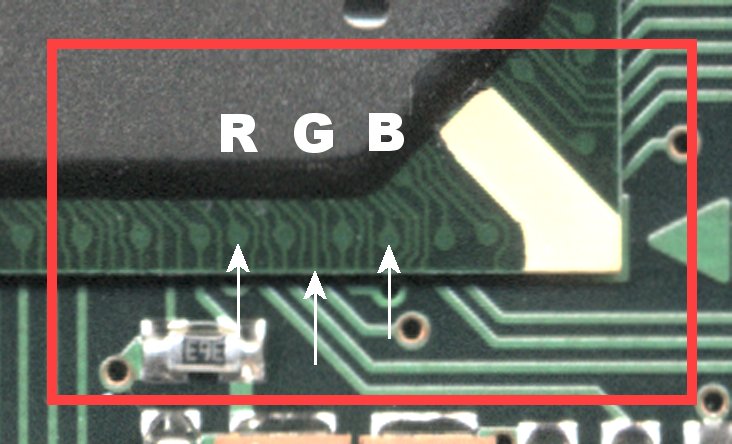

Location of the RGB outputs of the AV7111

Caution, only for very experienced people. I have not yet tried to solder wires to these tracks!

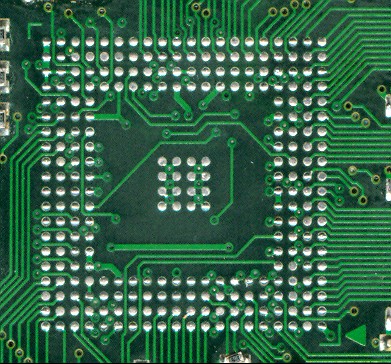

PCB-Layout (Desoldered AV7111)

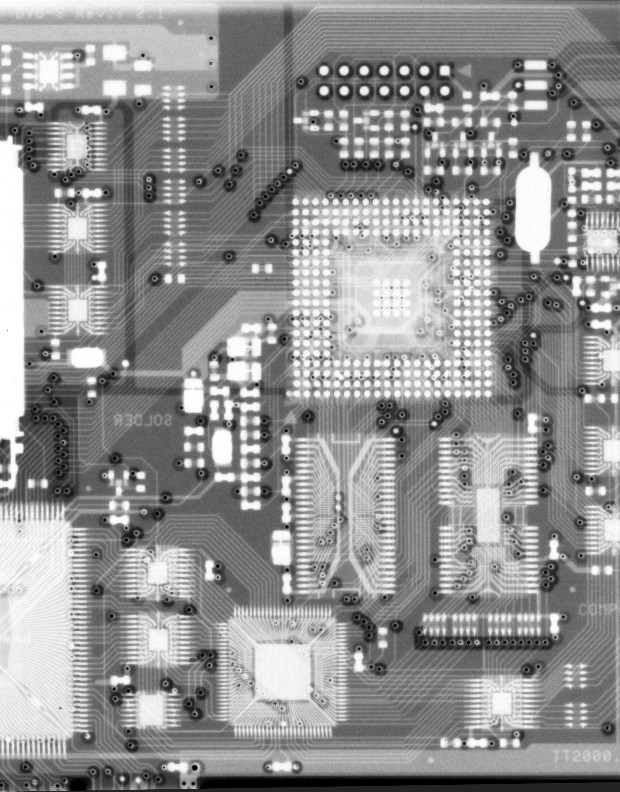

X-Ray picture of the Rev. 2.1 AV7111 area
